StarSim HIL is a real-time simulation system host software of ModelingTech, which can be used to build FPGA-based hardware-in-the-loop simulation system together with StarSim FPGA Circuit Solver, etc. StarSim HIL is a configuration software, which is directly compatible with the user's freely-built models, and can help users to easily and quickly implement simulation tests. StarSim HIL is a configuration-based software, which is directly compatible with the models built by users, and the one-click loading method eliminates the waiting time for compilation, which can help users to realize simulation test conveniently and quickly.
Both CPU and FPGA can load the model, and the interaction interface can be configured for joint simulation with small and large step sizes, and just reload when switching topologies.

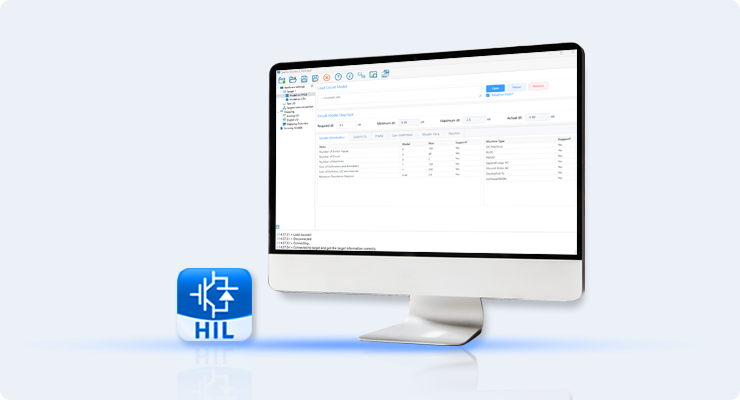

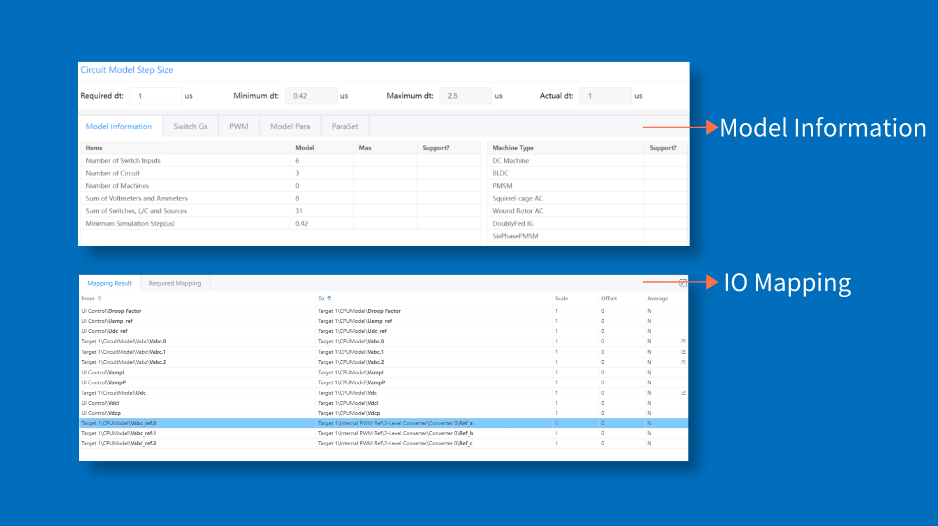

After the model is loaded, the FPGA resources consumed, the simulation step size, the number of interfaces, etc. are analysed and displayed in one click, and the mapping relationship between the model IO and the hardware IO of the simulator can be completed by a mouse click, so that the relationship between the inputs and outputs can be seen at a glance.

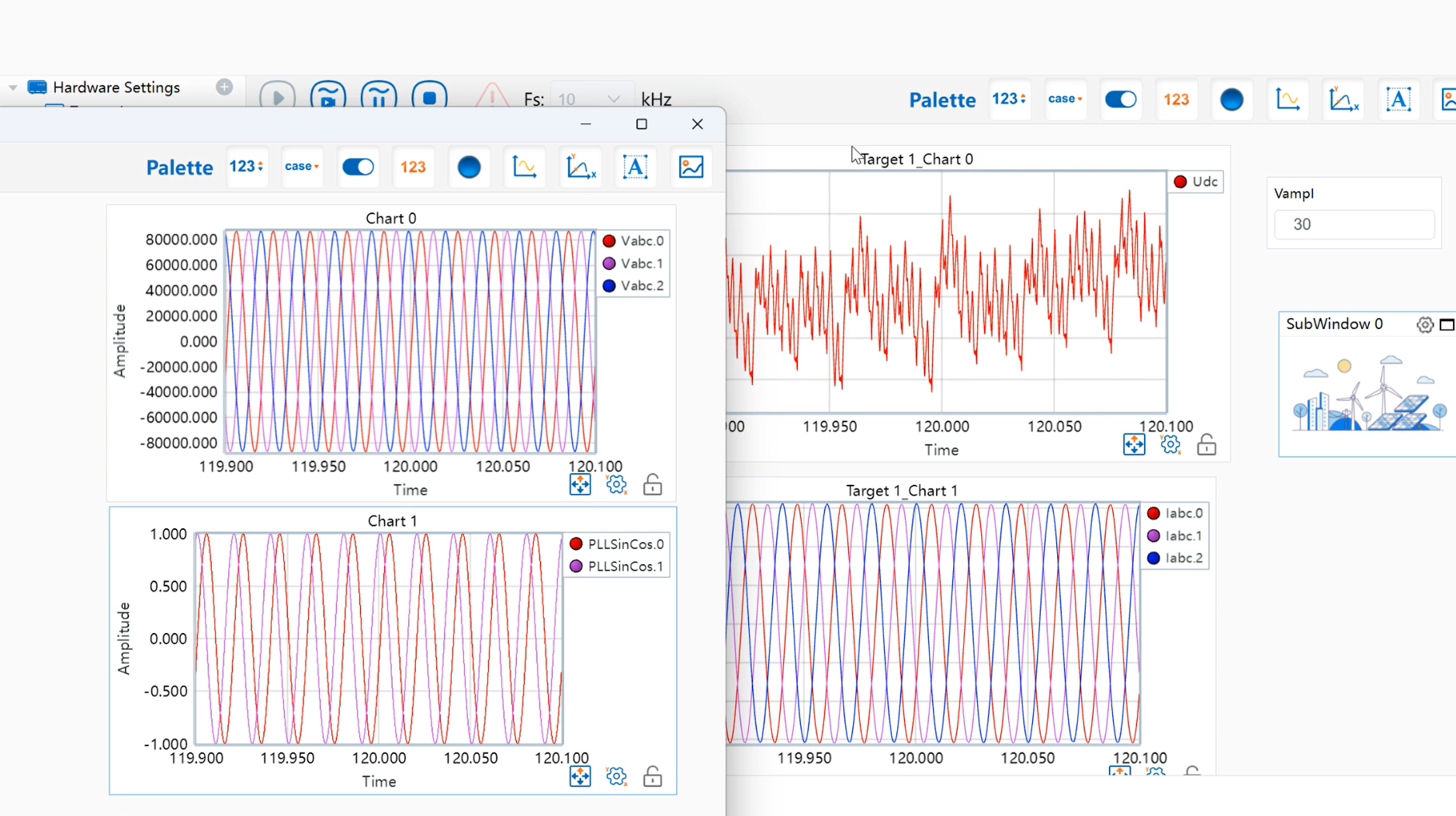

Users are free to add and delete control oscilloscopes, waveforms, text and images, create custom monitoring screens with multiple screens and windows, and display the interface on the oscilloscope control as long as it is set up by the model.
